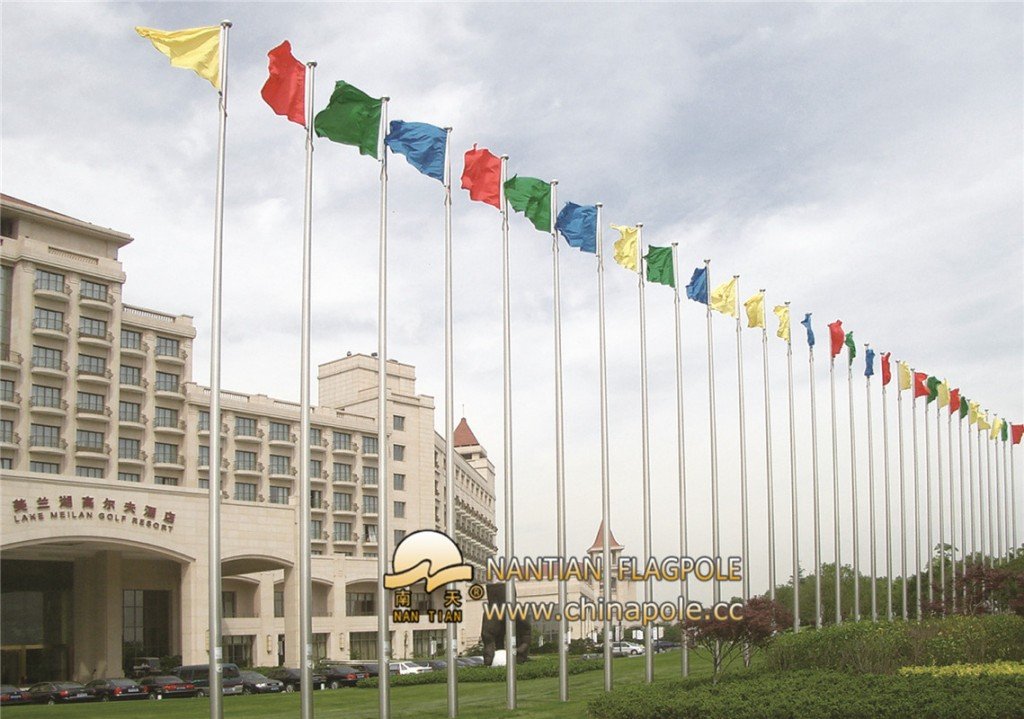

Flagpoles NTF20
| Product Name: | flagpoles |
| Model Number: | NTF20 |
| Brand Name: | NANTIAN |
| Payment Terms: | T/T, L/C |
| Certificate: | ISO9001:2000 |
| Place of Origin: | Jiangsu Province, China |
| Port of Loading: | Shanghai Port |
| Unit Price: | Negotiable |
NANTIAN flagpole, which is energy-saving and has smooth surface, has various surface treatment to make the pole more beautiful in appearance. The flagpole also has some patented technologies with independent intellectual property rights, such as internal halyard system, revolving truck, pneumatic device, automatic electric system, national anthem device and the hinged base plate, making the process of assembling more convenient; The hanging rod makes no noise with un-touching the pole; The flag turns more flexible with rotating of the revolving truck. The automatic electric system and the automatic national anthem device can meet customers’ needs. The flagpole looks tall and magnificent.
NANTIAN is a professional manufacturer of stainless steel flagpoles, and successfully became the flagpole supplier of :
◆ Atlantis the Palm Hotel Dubai
◆ The 1st Youth Olympic Games Singapore
◆ African Union Conference Center
◆ The 26th World University Games
◆ BEIJING 2008 OLYMPICS CHINA
◆ 16TH ASIAN GAMES GUANGZHOU CHINA
◆ EXPO 2010 SHANGHAI CHINA
The specifications of stainless steel flagpoles are as follows:
Material: 304 and 316 Grade stainless steel
Height: 3m-100m
Thickness: 2.5mm-6mm
Surface treatment:satin brush, mirror polish or polyester powder coating
Specification of Nantian Stainless Steel Flagpole |
|||||||
| No | Item No | Height (m) | Top OD (m) | Bottom OD (m) | Material | Wall Thickness (mm) | Wind Speed |
| 1 | NTF06 | 6 | 80 | 140 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 2 | NTF08 | 8 | 80 | 160 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 3 | NTF09 | 9 | 80 | 170 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 4 | NTF10 | 10 | 80 | 180 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 5 | NTF11 | 11 | 80 | 190 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 6 | NTF12 | 12 | 80 | 200 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 7 | NTF13 | 13 | 80 | 210 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 8 | NTF14 | 14 | 80 | 220 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 9 | NTF15 | 15 | 80 | 230 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 10 | NTF16 | 16 | 80 | 240 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 11 | NTF16.8 | 16.8 | 80 | 248 | SS316/SS304/SS201 | 2.5/3.0 | 126Kmph |
| 12 | NTF17 | 17 | 80 | 250 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 13 | NTF18 | 18 | 80 | 260 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 14 | NTF19 | 19 | 80 | 270 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 15 | NTF20 | 20 | 80 | 280 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 16 | NTF21 | 21 | 80 | 290 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 17 | NTF22 | 22 | 80 | 300 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 18 | NTF23 | 23 | 80 | 310 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 19 | NTF24 | 24 | 80 | 320 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 20 | NTF25 | 25 | 80 | 330 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 21 | NTF26 | 26 | 80 | 340 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 22 | NTF27 | 27 | 80 | 350 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 23 | NTF28 | 28 | 80 | 360 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 24 | NTF29 | 29 | 80 | 370 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 25 | NTF30 | 30 | 80 | 380 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
| 26 | NTF30.8 | 30 | 80 | 388 | SS316/SS304/SS201 | 3.0+3.0 | 126Kmph |
