Light-column-M-TD01

Lighting Column M-TD

$330.00 $280.00


Product Name: Aluminum Light Column M-TD
Model Number: M-TD
Brand Name: MRC
Payment Terms: T/T, L/C
Certificate: ISO9001:2000
Place of Origin: Jiangsu Province, China
 Port of Loading: Shanghai Port, Nanjing Port
Unit Price: Negotiable

MRC working to find and find a brand new creative elements, design concept and life demand will be the perfect combination.

Aluminum Lighting Columns take advantage of its permanence of non-rust, multiples way of surface treatment, less material cost, succinctly smooth lines and other characteriestics to make up shortcomings from traditional steel lighting pole; It is easy to rust, the design isn’t diverse, the surface is quite rough, the mold cost is high, the environment-protective is bad and so on.

More Product Features

HS Code: 7604210000
Trademark: MRC
Standard: 2.5-4.0 m
Productivity: 100 PCS/Day
Unit Price: Negotiable
Shipment Terms: FOB,CIF, CNF
Payment Terms: T/T, L/C at sight,
Minimum Order: 20 Pieces
Price Valid Time: 30 days
Origin: China
Packing: Plastic Bag or Pallet
Light Source: LED Light
Power Supply: AC
Application: Garden, Street, Residence, Square, School and so on.
Light Pole Material: Aluminum Alloy 6063-T6
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Light-column-M-TD03

Light-column-M-TD01Light-column-M-TD02

Light-column-M-TD

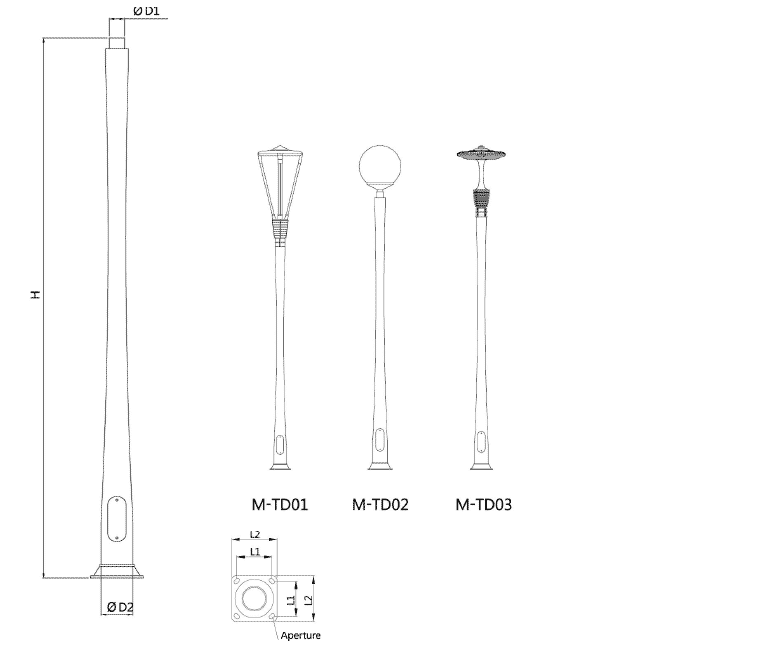

Specification:

Item Max OD

(mm)

Wall Thickness

(mm)

Height

(m)

Top OD

(mm)

Bottom OD

(mm)

Base Plate

(mm)

Holes Pitch

of Base Plate

(mm)

Aperture

(mm)

M-TD01/03 127 3.0 2.5-4.0 114 127 260 200 22×35
M-TD01/03 157 3.0 2.5-4.0 114 157 260 200 22×35
M-TD01/03  150 4.0 2.5-4.0 114 150 260 200 22×35
M-TD02  127 3.0 2.5-4.0 76 127 260 200 22×35
M-TD02  157 3.0 2.5-4.0 76 157 260 200 22×35
M-TD02  150 4.0 2.5-4.0 76 150 260 200 22×35



Advantages of aluminium poles:
1.Corrosion resistant.
2.Maintenance free.
3.Lighter weight for easy and cost efficient installation.
4.various finishing.
5.longer life than steel and Fiberglass.
6.100% recyclable, aluminium melting temperature is low to save energy and reduce emission.
7.direct buried applications.
8.less deflection than fiberglass poles.

Correlation Table:

Product Advantage Shortcoming
Steel poles strength l Visible rust and corrosion
l Weights three times as aluminium and high freight cost
l Limited recycle value
l Should not be direct buried
l Limited finishing
Fiberglass poles Light weight
Can be direct buried
l Short life
l No recycle value and difficult and expensive to dispose
l Ultraviolet damage is common
l Expensive maintenance costs
l Can be damaged by mowing& trimming
Concrete poles Can be direct buried
Strength
Never needs painting
l Heavy and expensive shipping costs
l No recycle value
l Difficult to install and require expensive installation equipment
l More dangerous than other material
